ProVia Drilling and Cutting Systems
ProVia systems are advanced volume production workstations for rigid, rigid-flex or flex panels, incorporating high performance beam positioning and laser control for high throughput drilling and routing of complex features.
Choose from Dual-laser (UV + CO2), UV, and CO2 lasers models:
- Dual or single laser systems
Single-laser systems available in dual-head, dual-panel processing configurations
All systems are roll-to-roll compatible
Standard or compact automation available
CO2 laser systems are appropriate for high speed drilling, cutting and skiving of dielectrics, while UV laser systems are able to drill and pattern copper and can provide higher process quality in many dielectrics. Whether your application is with glass or organic reinforced epoxies or non-reinforced materials (resin-coated foil or polyimide), there is a ProVia model to meet your requirements.
ProVia FP-UC Dual Laser Drilling System
ProVia FP-UC laser drilling and cutting systems incorporate both UV and CO2 lasers and scan heads. The CO2 laser is appropriate for high speed drilling, cutting and skiving of dielectrics, while the UV laser is able to machine copper and provide higher process quality in many dielectrics.
- Combining both laser sources (UV + CO2) into one system allows a simple, reliable process with a large process window
- Openings in the top copper with high accuracy using the UV laser
- CO2 lasers remove the dielelectric without damage to the top or bottom copper surfaces
- Each process step may be optimized independently

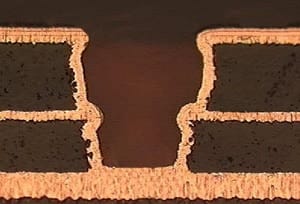

- Multistep processing allows automatic drilling of two-layer vias
ProVia FP-C CO2 Laser Drilling System
The mid-infrared wavelength of the CO2 laser is strongly absorbed by common dielectric materials and strongly reflected by copper. As a result a large CO2 spot can over-fill an opening in the copper (created by a UV laser or chemically etched) without risk of damage to the top layer of copper surrounding the hole (the capture pad).
- Repeated pulses will ablate the dielectric (including woven glass reinforcement)
- The process self-terminates on the stop layer as the beam is reflected by the copper
ProVia FP-U UV Laser Drilling System
The UV laser is absorbed by both copper and dielectric materials. A high intensity spot is needed to drill through copper while lower intensity is adequate for some dielectrics, notably polyimide and acrylic adhesives used in flexible printed circuits. The high intensity spot can be used to drill through-holes in flex material, while a multi-step process with both high intensity and low intensity process steps can be used to drill blind holes.
- Superior drilling and cutting quality in copper and many dielectrics
- High performance beam positioning for rapid, accurate panel processing.
- Excellent offering for high-mix, flexible manufacturing environments
ProVia Laser Drilling System Optional Features
ProVia laser via drilling and cutting systems provide a full set of options including: autoloaders, inspection microscopes, dual-head, dual panel drilling and more.
